Diamond & CBN Mounted Points

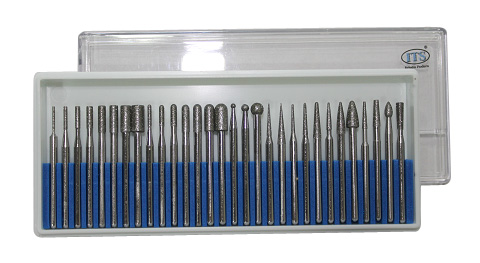

Diamond & CBN Mounted Point Set

IMD & IMB – 30 : 30 pcs/set

Contains one each of below:

10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, 20B, 30B, 50B, 30F, 30N, 20P, 30P, 50P, 15R, 20R, 30R, 20T, 30T, 15U, 20U, 25U, 30U, 35U, 40U, 50U, 20V, 30V.




Order No. 10A 15A 20A 25A 30A 35A 40A 50A
ØD 1 1.5 2 2.5 3 3.5 4 5
T 8 8 8 8 10 10 10 10
Grit Size #150 #150 #120 #120 #120 #120 #120 #100


Order No. 60A 10U 15U 20U 25U 30U 35U 40U
ØD 6 1 1.5 2 2.5 3 3.5 4
T 10 8 8 8 8 10 10 10
Grit Size #100 #150 #150 #120 #120 #120 #120 #120


Order No. 50U 60U 20T 30T 30N 13R 14R 15R
ØD 5 6 2 3 3 1.2 1.5 1.5
T 10 10 10 10 10 16 13 10
Grit Size #100 #100 #120 #120 #120 #150 #150 #150


Order No. 20R 30R 20V 30V 40V 50V 60V 20P
ØD 2 3 2 3 4 5 6 2
T 12 14 12 15 15 15 13 10
Grit Size #150 #120 #150 #150 #150 #150 #150 #120


Order No. 30P 40P 50P 60P 30K 40K 50K 60K
ØD 3 4 5 6 3 4 5 6
T 10 10 10 12 14 9 10 13
Grit Size #120 #120 #100 #100 #120 #120 #100 #100


Order No. 10B 15B 20B 25B 30B 40B 50B 60B
ØD 1 1.5 2 2.5 3 4 5 6
T - - - - - - - -
Grit Size #200 #150 #150 #120 #120 #120 #100 #100


Order No. 80B 30Q 40Q 50Q 60Q 20F 30F 40F
ØD 8 3 4 5 6 2 3 4
T - 5 7 9 10 4 6 8
Grit Size #100 #120 #120 #100 #100 #120 #120 #120

IMD & IMB-30 : 30 pieces diamond & CBN mounted point set, contains one each point which denoted by *.
The tools with Ø1/8” shank or with CBN abrasive are available upon request.
