Diamond Dresser Tools

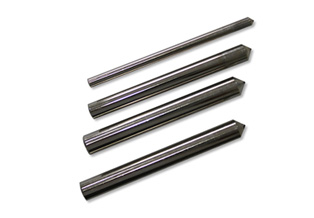

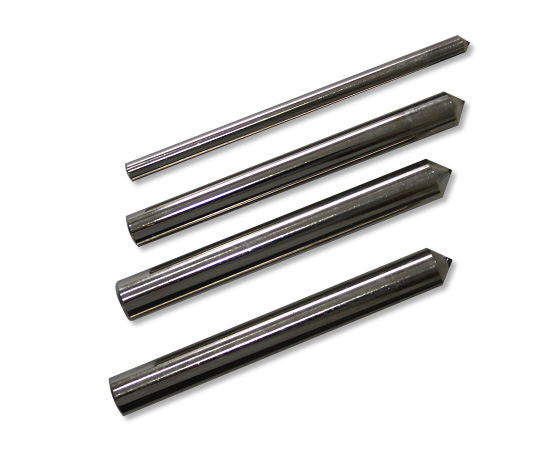

Single Point Diamond Dressers
 |
 |
| Order no. | ØD | L | Approx. wt. Carat |
| SP6025 | 6 | 100 | 0.25 |
| SP6050 | 6 | 100 | 0.5 |
| SP6075 | 6 | 100 | 0.75 |
| SP6100 | 6 | 100 | 1.0 |
| SP1025 | 10 | 100 | 0.25 |
| SP1050 | 10 | 100 | 0.5 |
| SP1075 | 10 | 100 | 0.75 |
| SP10100 | 10 | 100 | 1.0 |
| SP1225 | 12 | 100 | 0.25 |
| SP1250 | 12 | 100 | 0.5 |
| SP1275 | 12 | 100 | 0.75 |
| SP12100 | 12 | 100 | 1.0 |
| SP12150 | 12 | 100 | 1.5 |
| SP12200 | 12 | 100 | 2.0 |
Installation and operation
 |
 |
 |
 |

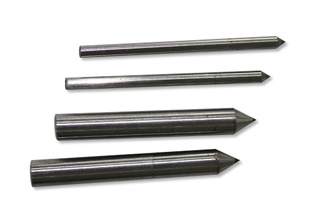

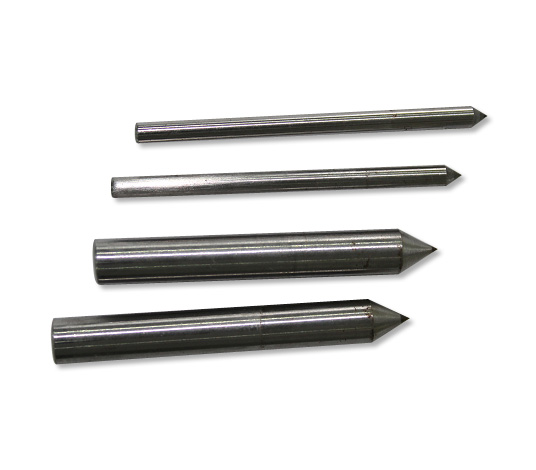

Coned Diamond Dressers
 |
 |
| Order no. | ØD | L | V° | R |
| CD3000 | 3 | 50 | 60° | 0.02~0.03 |
| CD6000 | 6 | 50 | 60° | 0.02~0.03 |

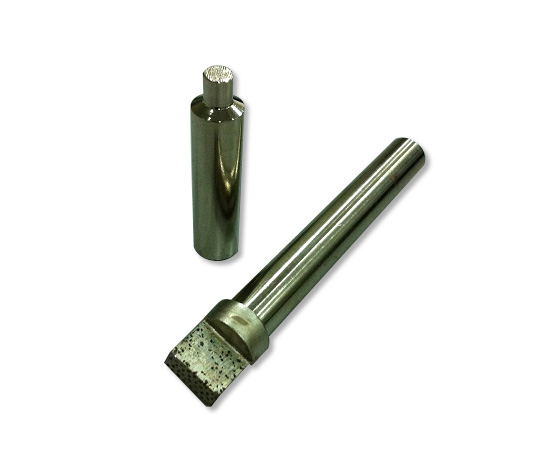

Impregnated Diamond Dressers
 |
|
||||||||
| Order no. | Diamond tips | Grit size | Type of shank | Size of shank | Applications |

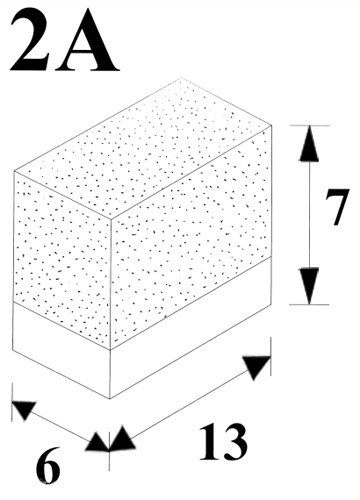

| ID-2AF1 | 2A | F |  |
Ø12 x 100L | For centerless, cylindrical, surface grinding. Wheel size: Ø300 x 25 to Ø500 x 63 |
| ID-2AM1 | 2A | M | Ø11 x 100L | ||
| ID-2AR1 | 2A | R | |||
| ID-2AF2 | 2A | F |  |
Ø12 x 100L | |
| ID-2AM2 | 2A | M | Ø11 x 100L | ||
| ID-2AR2 | 2A | R | |||

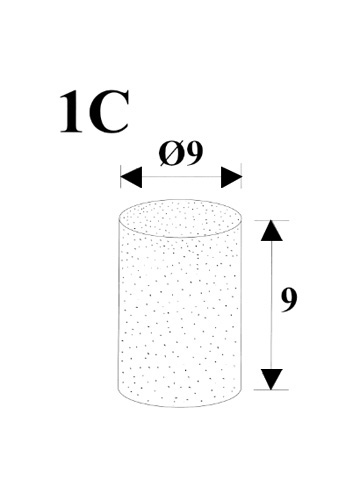

| ID-1CF3 | 1C | F |  |
Ø12 x 50L | For general purpose grinding. Wheel size: below Ø300 |
| ID-ICM3 | 1C | M | Ø11 x 50L | ||
| ID-ICR3 | 1C | R |
Grit size: F – Fine M – Medium R – Coarse
